Williams Bally WPC89 WPC-S DMD Driver Board Part A-14039 DMD089

Williams / Bally WPC89 / WPC-S A-14039 DMD Driver Board

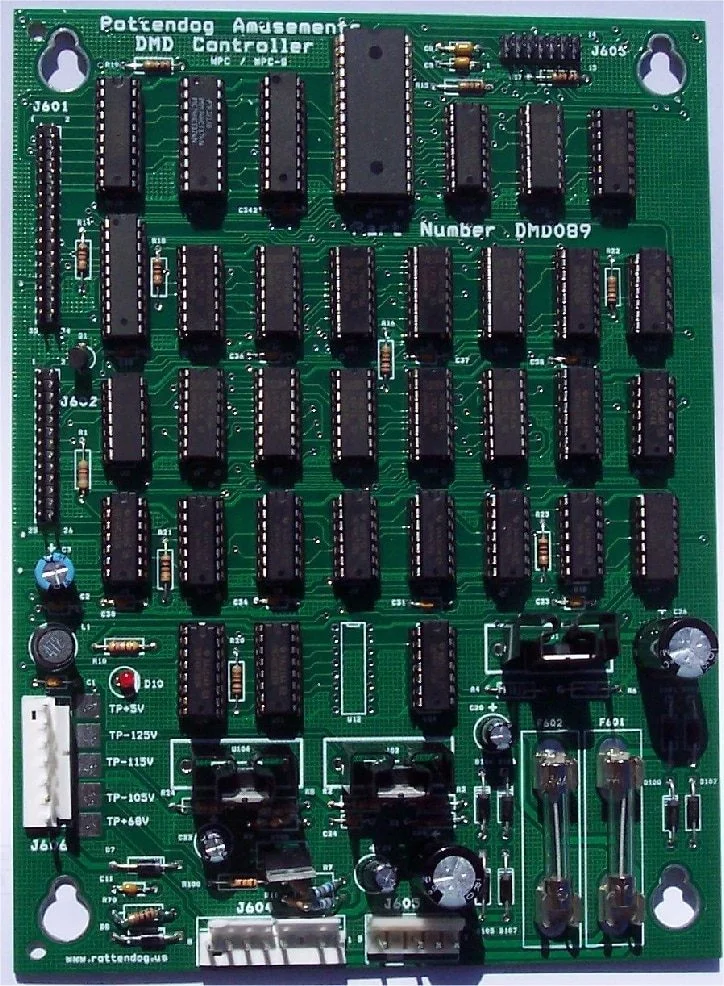

DMD089 – Dot Matrix Driver Board compatible with Williams WPC89 and WPC-S pinball games.  The board that this replaces is Bally / Williams part numbers A-14039 (all versions).

This board is a direct plug in replacement for the original OEM driver board.

The high voltages produced by this board are nominally set for –110V, –100V and +64V.  These voltages can be adjusted but you would need to change resistor values!

Key Benefits

– Redesigned / simplified high voltage section which eliminates high temperature circuit board burn.  This board will NOT burn up the way the original board does!

– LEDs added for visual verification of +5VDC

– Test point locations centralized into one location and clearly marked for easier troubleshooting

– All new (not 25+ year old) components and PCB

Game Listing

• Addams Family
• Addams Family Gold
• Black Rose
• Corvette
• Creature From the Black Lagoon
• Demolition Man
• Dirty Harry
• Dr. Who
• Dracula
• Fish Tales
• Flintstones
• Funhouse
• Gilligan’s Island
• Harley Davidson
• Hurricane
• Indiana Jones
• Indianapolis 500
• Jackbot (DMD Version Games Only)
• Johnny Mnemonic
• Judge Dredd
• No Fear
• Party Zone
• Popeye
• Road Show
• Slugfest
• Star Trek the Next Generation
• Terminator 2
• The Getaway
• The Machine BOP
• The Shadow
• Theater of Magic
• Twilight Zone
• White Water
• Who Dunnit
• World Cup Soccer ’94
